240V & Air Powered Hydraulic Pumps & Hoses

Available for both purchase and hire.

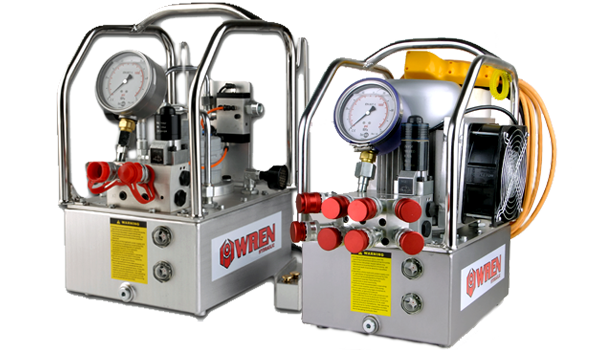

Torque Tool Supplies offer two different hydraulic wrench pumps. The LP3 Electric pump which is 240V over hydraulic, and the LP3-N Air pump which is pneumatic over hydraulic. Both of these pumps run hydraulic tools from 140 – 55,000 FT LBS. The LP3 series of pumps are unmatched for weight, speed, durability, size and price. These pumps work in 3 stages, for low, mid and high pressures, making them ideal for all tool sizes.

The newer models of these pumps have shown vast improvements from the earlier models. They have become extremely popular with all major manufacturers in the mining, power and petrochemical industries. Pumps are offered with heavy duty weather-proof containers and extra heavy duty roll cages optional.

Hydraulic wrench pumps are used with hydraulic torque wrenches. The pump is connected up to either 240V power or an air supply (depending on which pump you are using) and is then connected to a hydraulic torque wrench via a 4:1 twin-line hose. Standard pumps are able to run two tools at once and with a 4 port manifold they can run up to 4 tools simultaneously.

240V Hydraulic Wrench Pump

Part Number: 9222 Flow (low/mid/high): 7/1.6/0.8 L/min
Model: LP3 Power: 220 – 240 volt – 50 HZ
Shift Valve: Advance / auto return DBA: 70 DBA at 10,000 PSI
Cooling: Heat exchanger Weight: 25 KG
Ports: 2 – 4 ports Sump: 5.5 Litres
Hydraulic Oil: Viscosity 46 Max Pressure: 700 BAR / 10,000 PSI
Remote Length: 6 metres Regulator: 1,200 – 10,000 PSI
Roll Cage: Standard or heavy duty Size: 305 x 445 x 426mm

240V Hydraulic Wrench Pump - Breakdown

1. Regulator

The regulator allows operator to set the pressure. Turning the relulator to the right will increase the pressure and turning it left decreases it. Pressure setting from 1,200 – 10,000 PSI can be achieved within two easy rotations.

5. Solonoid

Sometimes after advancing the pump and then turning it off, the guage may still show a small amount of pressure. By pressing the button on top on the solonoid, all pressure left in hoses will be relieved.

2. Couplers

All pumps come standard with 1/4″ bearing seated male and female couplers.

6. Oil Level Indicator

This is where oil level can be checked. Pumps should always be at least 3/4 full with grade 46 powerteam hydraulic oil.

3. Guage

All pumps come complete with a 4″ pressure guage. While the pump is in retract by default the guage will show 1,200 PSI, when the pump is advanced the pump will show whatever pressure the regulator is set at. All guages are pre calibrated with a + / – 3% consistency.

7. Oil Cooler

The oil cooling fan prevents oil from overheating, making these pumps ideal for long production, maintenence or shut down jobs.

4. Remote Control

Pumps are controlled through a remote control. The top button turns the pump on or off and the bottom button advances the pump. As soon as the advance button is released the pump will automatically retract.

Pneumatic/Air Hydraulic Wrench Pump

Part Number: 9228 Flow (low/mid/high: 10/2.2/1.1 L/min
Model: LP3-N Air Flow: 4-8 Bar / 60 – 100 PSI @ 25 – 35 CFM
Shift Valve: Advance / auto return DBA: 70 DBA at 10,000 PSI
Cooling: Internal, input air circulated through pump via heat exchanger Weight: 19 KG
Ports: 2 – 4 ports Sump: 5.5 Litres
Hydraulic Oil: Viscosity 46 Max Pressure: 700 BAR / 10,000 PSI
Remote Length: 6 metres Regulator: 1,200 – 10,000 PSI
Roll Cage: Standard or heavy duty Size: 442×282×377

Pneumatic Hydraulic Wrench Pump - Breakdown

1. Regulator

The regulator allows operator to set the pressure. Turning the relulator to the right will increase the pressure and turning it left decreases it. Pressure setting from 1,200 – 10,000 PSI can be achieved within two easy rotations.

5. Solonoid

Sometimes after advancing the pump and then turning it off, the guage may still show a small amount of pressure. By pressing the button on top of the solonoid, all pressure left in hoses will be relieved.

2. Couplers

All pumps come standard with 1/4″ bearing seated male and female couplers.

6. Oil Level Indicator

This is where oil level can be checked. Pumps should always be at least 3/4 full with grade 46 powerteam hydraulic oil.

3. Air Flow Lubricator/Water Trap Filter

All air pumps need a lubro. The lubro has 2 main jobs, it supplies a timed oil drop to the pump motor and it traps any water that may be in the line, stopping it getting through to the motor. This ensures the pumps lifespan and performance.

7. Guage

All pumps come complete with a 4″ pressure guage. While the pump is in retract by default the guage will show 1,200 PSI, when the pump is advanced the pump will show whatever pressure the regulator is set at. All guages are pre calibrated with a + / – 3% consistency.

4. Remote Control

Pumps are controlled through a remote control. The top button turns the pump on or off and the bottom button advances the pump. As soon as the advance button is released the pump will automatically retract.

High Torque Hose Sets

Part Number: 9246
Description: High Torque Hose set
Type: 1/4″ Twin Line – Steel Braid
Rating: 4:1 10,000 Working Pressure
Couplers: 1/4″ Screw Ball connect (2 female) (2 Male) Supplied
Hose Guards: Optional
Hydraulic Test Tag: Supplied
Available Lengths: 1m, 2m, 3m, 4m, 5m, 7m, 10m, 15m
Colour:   Yellow & Red
Weight:   4.7 kg – 6m Hose
High torque hoses are used to connect hydraulic tools to the pump. hoses have a working pressure of 10,000 PSI with a burst limit of 40,000 PSI and have a standard ratio of 4:1. Hoses come pre assembled with couplers, and are bled, testsed at 10,000 PSI and tagged. Custum length hoses are also available.

For Purchasing or hiring enquiries give us a call or send us a message
